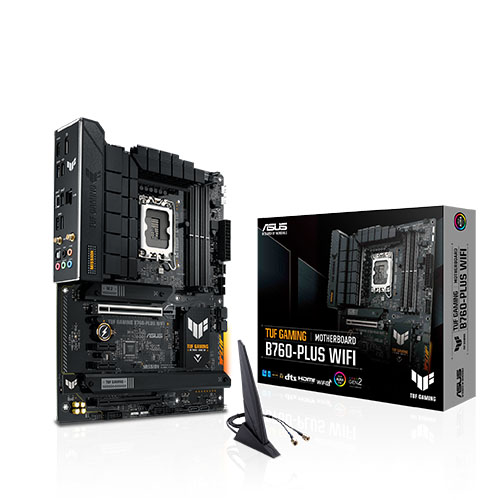

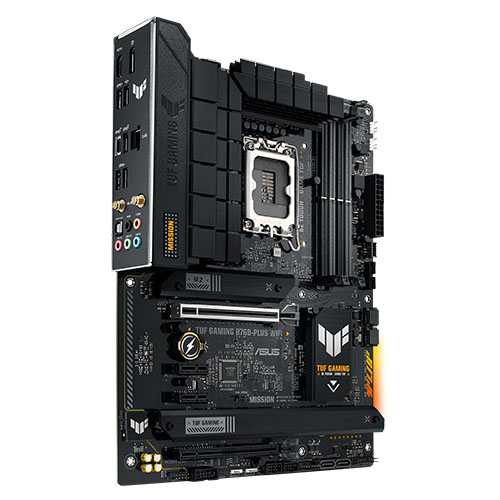

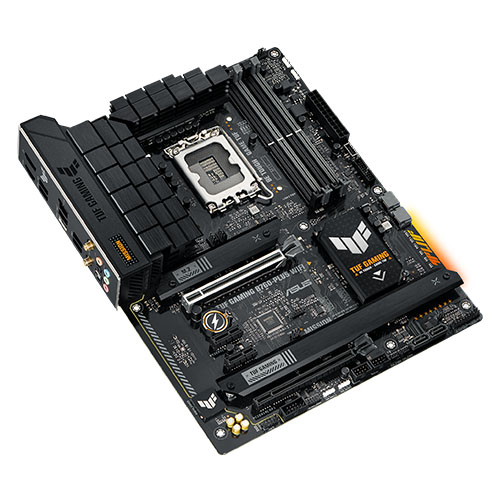

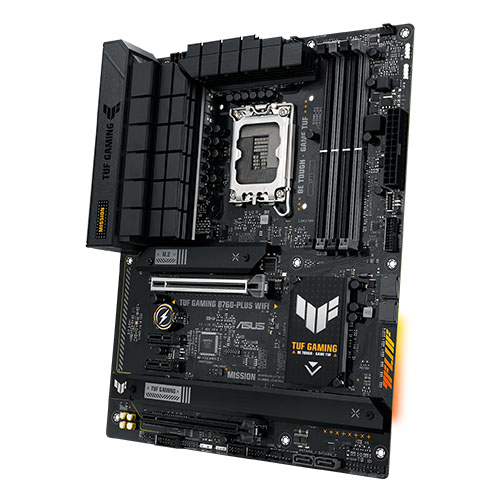

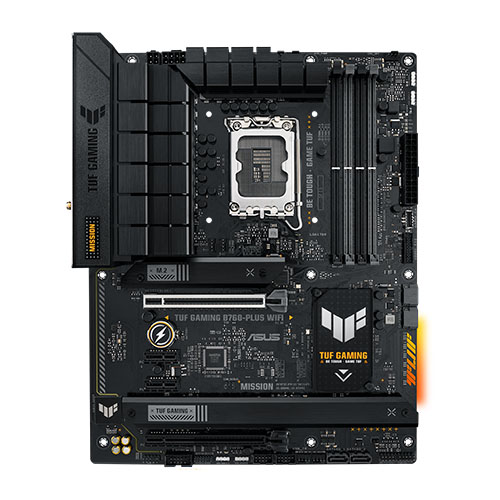

Mainboard Asus TUF GAMING B760-PLUS WIFI DDR5

• Bus RAM hỗ trợ

4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory

• Thông số (Lan/Wireless)

1 x Realtek 2.5Gb Ethernet
TUF LANGuard

• Khe cắm trong

Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
IntelRapid Storage Technology supports SATA RAID 0/1/5/10

• Khe cắm mở rộng

Intel® 13th & 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot

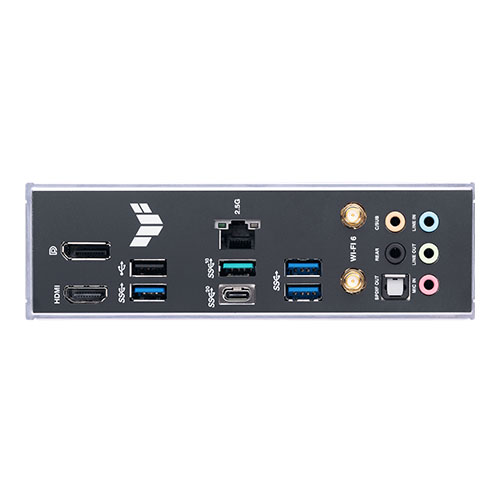

• Cổng giao tiếp ngoài

X USB 3.2 Gen 2x2 port (1 x USB Type-C®)
1 x USB 3.2 Gen 2 port (1 x Type-A)
3 x USB 3.2 Gen 1 ports (3 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port

• Socket

Intel LGA 1700

• Chipset

Intel B760

• Khe cắm RAM

4 khe ram

• Card đồ họa

1 x DisplayPort
1 x HDMI® port
Graphics specifications may vary between CPU types. Please refer to www.Intel.Com for any updates.
Supports max. 4K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1

• Âm thanh

Realtek 7.1 Surround Sound High Definition Audio CODEC

• Kết nối không dây

Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.2

• Kích thước

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
